Portable Smart GPS Tracking Locator Tools Choice Collections provide gps tracker,gps satellite locator Terrific Limited Mini Pet GPS Tracker Long Standby Time Dog Cat personal Pet Collar gps tracker /IOS /Andriod App free website service. Get Discount Now! Only US $47.49/piece at this time. Hurry buy Now before back to normal price! Normal price US $49.99 or you can Check price now. Dont waste your time. Buy Now only in Greattop Electronic Company Limited Trusted Seller Store!

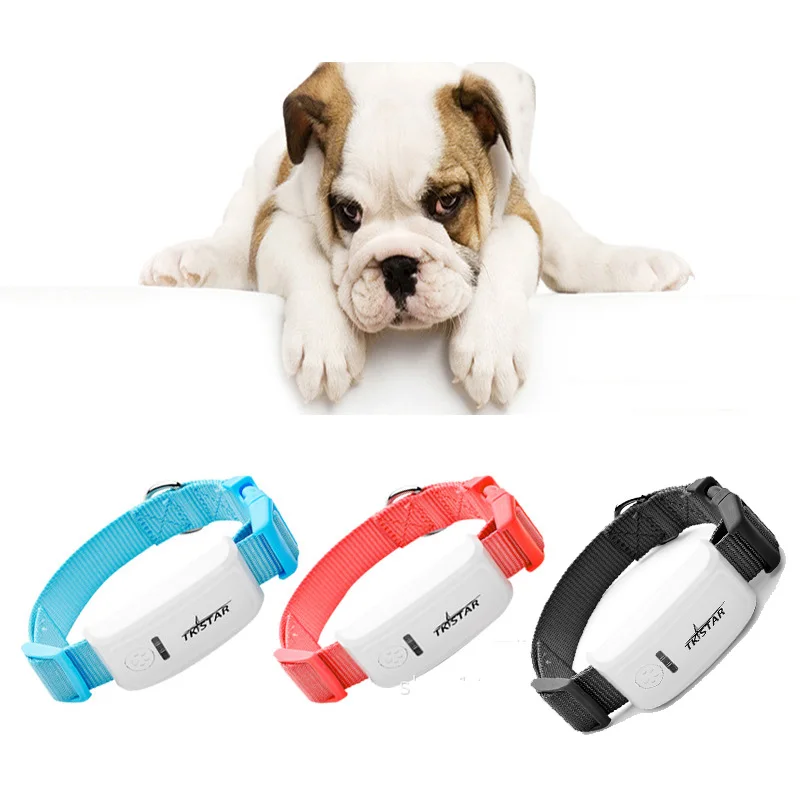

Mini Pet GPS Tracker Long Standby Time Dog Cat personal Pet Collar gps tracker /IOS /Andriod App free website service
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and GSM dual positioning.
| Content | Specs. |
| Dim. | 70mm x 37mm x 20mm(2.7”*1.4”*0.78”) |
| Weight | 44g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
| Car charger | 12—24V input 5V-1A output |
| Wall charger | 110--220V input 5V-1A output |
| Battery | Chargeable changeable 3.7V 1000mAh Li-ion battery |
| Stand by | 400hours |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| LED INDICATOR STATUS | MEANING |
| GREEN-Solid | No GPRS signal. |
| GREEN-Flashing | GPRS communication established. |
| Center-RED-Not lit | Fully charged. |
| Center-RED-Solid red | Charging. |
| BLUE-Solid | Searching for GPS signal. |
| BLUE-Flashing | GPS location successful. |
Note: SMS tracking works in GREEN-Solid mode and GREEN-Flashing mode, online tracking only works in GREEN-Flashing mode, turn on GREEN-Flashing mode by sending command “gprs123456” and set APN for the tracker
INSTALLATION
2. 1 SIM-CARD INSTALLATION
2.3 EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE
1. Google Maps link: This is the link to the Google map showing the position of the tracker unit.When click the link, if a map is displayed, there is GPS information for the unit. If there is no may, there is no GPS information for the tracker.2. V:A/V: Indicates GPS signal. V:A indicates there is a GPS signal; V:V indicates there is no GPS signal.
3. 2014-07-29 06:41:43 The date and time stamp when the unit last received a GPS signal.
4. S: 007km/h: This indicates the last known speed of the unit.
5. Bat:80% The approximate amount of battery charge remaining. The value is between5%and 100%, with 100% being fully charged.
6. 4109112546: The IMEI code of tracker device. This number is used for tracking website and the app.
3. SMS Tracking
1) Call the SIM-card phone number in the device by other cell phone
2) Receive a Google Maps link by SMS to your mobile phone
3) Click on the Google Maps link
4) Now it displays the position of device.
3.1 Command Instruction
| INSTRUCTION | COMMAND | REPLY |
| Reboot the device | begin123456 | begin ok |
| Set authorized number | admin123456 phone number | admin ok |
| Cancel authorized number | noadmin123456 phone number | noadmin ok |
| SMS Track | G123456# | Google link |
| Set GMT time zone number | timezone123456 8 Timezone123456 -8 | time ok |
| Sleep by time (default mode-save much power,tracker will fall asleep in 5 minutes) | sleep123456 time | sleep time ok |
| Sleep by shock sensor(Suits for tracking on platform) | sleep123456 shock | Sleep shock ok |
| No sleep(tracker will continuou working) | sleep123456 off | sleep off ok |
| Switch to the NO GPRS mode(default mode) | Nogprs123456 | Nogprs ok |
| Switch to the GPRS mode(for tracking online ) | gprs123456 | gprs ok |
| Status Check | Check123456 | IP,APN,GPS, GSM,status |
| Porduct Show: |
ONLINE TRACKING
3.2.3 START ONLINE TRACKING
Platform : 2.tkstargps.net
IMEI No. : on the back side of cover
Password: 123456
3.2.4 APPLICATIONS FOR ANDROID/iOS
Search “TKSTAR“ in the Apple App Store/Google Play
Store or Scan the QR Code to install the applications on your cell phone.
Select “Log in by IMEI” on the bottom of screen
Server: 2.tkstargps.net
IMEI : on the back side of cover
Password: 123456
Note:
when the device has no GPS signal, or on sleeping mode,it reply 2 SMS, the rst of history record V: V,the second of real time tracking information after get GPS signal V: A.
When the device location show different with map, there are two kinds of circumstances, 1.Device in sleep condition, 2 No GPS signal;Solution: Dial SIM Card Number in the Device, if only reply one SMS with "V:V", it means no GPS Signal; If reply one SMS, with "V:A", it means device in sleep model;
(Note: We advice use Shock Sleep Model when driving)
