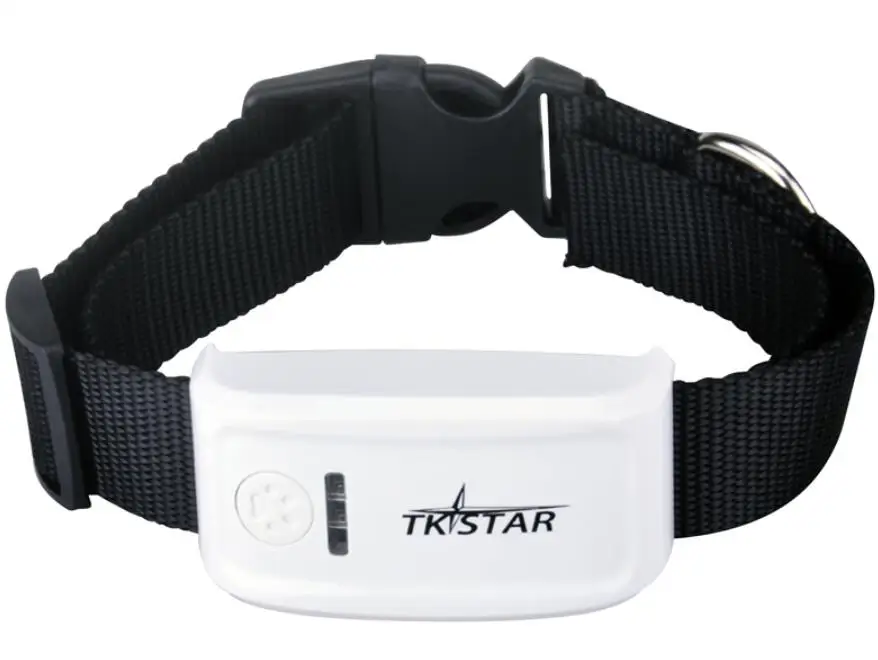

Portable Smart GPS Tracking Locator Tools Choice Collections provide satellite positioning tracker,gps tracking navigator,travel satellite locator Fast Clearance Portable GPS Real time trackers SOS communicator Super mini For Child /Pet/ Elderly tracking via internet website/SMS/Andorid. Price at this time US $40.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Satcus Industry Co., Limited Trusted Seller Store!
* This offer comes with retail box.
Important .please read
- This tracker was designed for people security and positioning , the company assume no liability or responsibility for any behaviors violate other individual’s privacy.
- All GPS have some position error, the reference positions indicated by this product are for you reference only, may also have errors.
- There may be delays caused by telecom carrier at certain circumstance. Our company is exemption from liability to security of person and property.
Main Function
- GSM quad-band network, GPS location
- Tracking via Internet / iphone app/ Android app / we chat / SMS
- Click for SOS
- Click for call
- 2 way communication
- Hand-free for talk
- Quiet care
- Low battery alert
- Change SIM alert
Accessories:
- 1* host
- 1* charger
- 1* watch band
- 1* USB cable
- 1* user manual
Note:
* 3 colors blue, pink, black for options, well send color at random if no requirement left.
Product View
Item | Function | Item | Function |
1 | Reboot hole | 2 | Power key |
3 | USB charger hole | 4 | Key 1 |
5 | GSM light | 6 | SOS key |
7 | GPS light | 8 | Key 2 |
9 | SIM Card slot | 10 | microphone |
11 | speaker | 12 | Hang rope hole |
Photos are for reference only, please in kind prevail.
Prepare for work
Please choose GSM network-based Micro-SIM card for the product. And please note:
- Please be sure the tracker is turn off before insert or take out the Micro-SIM.
- Please be sure the GPRS and Caller id has been activated
Power on /off
Please insert the Micro-SIM card into the card slot as directed.
Press the POWER key for 3 sec, then the tracker will ring and light on.
Indicator light show
Clore | Blue | Yellow |
function | GPS status | GSM status |
Slow flash | Searching GPS | Searching GSM |
Fast flash | GPS located | GSM ready |
Dark | GPS sleepping or not located | GSM sleeping or no GSM signal |
Platform tracking
Please visit www.gps123.org, use the ID number login the platform, password is 123456, you can tracking the tracker and playback history .
please ask your agent to get the platform user account for more function as geo-fence,system setting,etc..
Function setting via SMS
All command use in lowercase letters and ending by #.
For safety reason, there are password for setting master number. The factory password is 123456.
Command for setting master number:
password,sos1,phone number#
For example:123456,sos1,18628758770#
The tracker will reply:18628758770 has been set for the master number successfully.
Switch language ,setting by master number
- Send lag,1# change the language to Chinese.(default)
- Send lag,2# change the language to English.
- Send lag,3# change the language to French
Set SOS number:
Command for setting SOS number by master number:
sos2,number,sos3,number,sos4,number,sos5,number#
For example:
sos2,13600000000,sos3,1370000000,sos4,1380000000,sos5,1390000000# .
Tracker reply: Emergency contact number 2,3,4,5 has been set successfully.
Command for setting SOS number by other number.
sos2(3/4/5),number#
For example:sos2,13600000000#
Tracker reply:Emergency contact number 2 has been set successfully.
Command for empty master and SOS number by
master:reset# , the tracker replay:The device will be reset to factory default.
Make call and SOS help
Click key 1 will call master number.
Click key 2 will call SOS2 number.
Press Key S for 5sec will make sos help call. Then all of the SOS number will receive SMS as:SOS! Link to my current location: http://...... and the tracker will call all SOS number 2 times in turn.
Answer incoming call:
push-to-talk
Press any key answer incoming call when the tracker is ringing.
Press power key to refuse incoming call.
auto-answer (hands-free): send command mt# by master, then the tracker will auto-answer incoming call with all SOS number ,the caller can listen and talk with tracker owner.
silent monitoring:send command jy# by master, then the tracker will auto-answer incoming and keep speaker silent with all SOS number, the caller can listen the sound around the tracker.
Check function
Check the position
Command by master number :dw#
Tracker reply the current position .
Check tracker setting and situation:
send dsp# by master,
tracker will reply:IMEI:863964010100112, GSM signal: strong;GPS signal:valid; Battery life:80%;
Operating mode: push-to-talk; tracking:ON.
Other function
Setting interval of the position data upload
Command by master:tim,digital#
Fox example: tim,20#
That means the tracker per 20 minutes uploading one time position data.(factory default is 10 minutes)
Turn on /turn off data upload
Command for turn on data upload by master:gon# (factory default)
Command for turn off data upload by master:goff# ,in this state ,it will return map link when check position by dw#.
Turn on / turn off indicator light
Cammand for turn on indicator light by master:lon#(factory default)
Cammand for turn off indicator light by master:loff#
Change password
Command for change password :
password,t,new password#
For example:123456,t,456789#
The tracker reply:Your password has been successfully changed to 456789. Please keep it confidential.
Setting APN data
The tracker have pre-programed all most APN, if need add APN into the tracker, command for APN setting by master: apn,<apn>,user<user>,pd,<password>,plmn,<pl
mn>#
For example:apn,cmnet#
Reply information for successful setting:OK.
Alert function
Low battery alert: When the battery is low than 10%, the tracker will send SMS:Less than 10% of battery is left. Please charge the device immediately.
Change SIM alert: when the SIM was changed the tracker will send SMS:Alert: SIM card has been changed.
Remark
- The tracker will boot automatically when it was charging.
- Please put the tracker in network signal better position when use.
- The new machines need to be recharged for 3-4 hours before use in order to achieve the best results, please use our distribute charger avoid damage to the host.
- Standby time:
1)50 hours with per 10 min upload data one time .
2) 350 hours with never upload data. (depending on the local network signal )
Thanks!
Command for SMS setting
Command | Function |
password,t,password | Change the password, factory default is 123456. |
password,sos1, number# | Set master number |
sos2(3,4,5), number# | Set sos2 number |
aj# | Set push to answer incoming call (factory default) |
mt# | Auto-answer and hand free incoming call |
jy# | Silence monitoring |
dw# | Check the position |
lag,1# | Change the language to Chinese(factory default) |
lag,2# | Change the language to English |
lag,3# | Change the lauguage to Russian. |
tim,digital# | Setting interval of the position data upload. (factory default is 10 mins) |
gon# | Turn on the tracking function(factory default) |
goff# | Turn off the tracking function |
lon# | Turn on the Indicator light (factory default) |
loff# | Turn off the indicator light |
