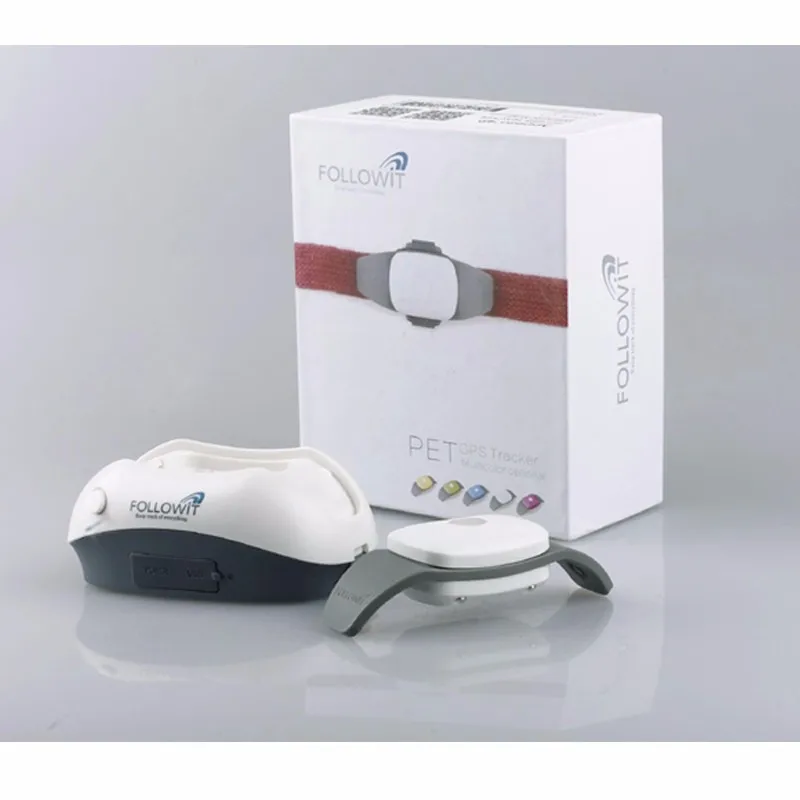

Portable Smart GPS Tracking Locator Tools Choice Collections provide gps satellite locator,pets tracker alarm Cool Clearance Pet GPS Tracker, Cat Locator Free APP, Pet GPS Collar, GPS Tracker High Quality Pet GPS Tracker. Get Discount Now! Only US $93.13/piece at this time. Hurry buy Now before back to normal price! Normal price US $169.33 or you can Check price now. Dont waste your time. Buy Now only in Paris-Sunny Trusted Seller Store!
GLOBAL COVERAGE & CELLULAR NETWORK & LIFETIME FREE APP: Take advantage of advanced GPS and cellular technology to find your pet anywhere in your cellphone for free with APP for APP for life
ACTIVE ALARM: When the pet left the plane safe range, the host will automatically alarm to the phone APP, APP alarm without notice to the owner (a plane can contact multiple hosts at the same time)
BATTERY LIFE: when pets are within 50 meters of the chassis, the host will turn off automatically, saving energy and saving data traffic. At this time, the host power will last for a year. When the pet exceeds 50 meters away from the chassis and lasts for 150 seconds, the host automatically starts to locate and alarm to the mobile phone APP. At this time, the host power can be used for 72 hours continuously.
DURABLE+WATERPROOF:the host software and rubber embedded GPS and GSM antenna, the host and the base combination, strong magnetic base can be adsorbed on the car metal, not afraid of the rain and dust
HIGH ACCURACY:As long as there is a wifi signal can be accurate instant positioning accuracy of 20-50 meters, the host does not boot and install the SIM card case can also find the host through the stand in the vicinity
Contents
1Introduction of GPS device and the Docking station
2The button and LED indicator light (below pictures)
Battery and working time
Operation
Turn ON/OFF
APP download
Network setting
Positioning mechanism and positioning accuracy
APP tracking
Notification center and alert
Technical parameters
Note: This product has other colors, as described below, but the spot is only white, and other colors to be customized in advance
Appello 4P illustrationThis unit including two parts, the GPS device(Tracker) and the Docking station (Base), the GPS device is a GPS tracker, the Docking station is a remote controller within scope of 10m and also 6380mAh power bank when put the GPS device on base.
1 Introduction of GPS device and the Docking station
The Docking station is moveable Geo fence of GPS device; the effective distance of remote control is 10m.
When the GPS device leaves from base out of 10m, the GPS device will work automatically after 80 seconds; and it will be no longer controlled by the base.
when it get into the scope of 10m, the GPS device will go to sleep automatically.
(PS: A base can control all GPS which are in the scope of 10m, and those GPS device can’t startup & stop by themselves.)
1.1 You can put the GPS device on base to charge if the GPS device runs out of the power; at the same time you can use them as a whole for a powerful GPS tracker.
1.2 The Docking station with a strong magnet which can hold itself firmly on the metal board;
2 The button and LED indicator light (below pictures)
Please be caution of the direction of below 5 contacts when put GPS device on base:
2.1 Put the right side of the GPS device on the base firstly, gently press the left side to combine, the GPS device will charge automatically and red LED light blinking; stop when done.
2.2 When press the SOS button, the orange light blinking, then the light will off after flashing 3 minutes consistently. Flashing 1time/1second is LBS location; flashing 1time/3seconds is GPS tracking. If blue indicator light flash 1time/1second, it means tracking successfully; flashing 1time/3seconds is sleeping mode. Pressing the key 3 seconds is SOS alarm.
2.3 Sliding the switch of the base to control the charge for GPS device. Mini USB port with a white longer cable connect for charging; white shorter power supply cord can take electricity 5v-1A to recharge for mobile phone or other electronic devices; The other cables to update firmware through the USB port.
2.4 “Reset” button locate on the position of”QC” mark. Slightly pressing this button, until the LED orange light blinking, upgrades firmware or reset System;
2.5 LED orange light on the base is power indicator, LED green light is charge indicator. Flash 1time/5s =30% orange light; flash 1time/3s = 20% power remaining; flash 1time/1s=10% power remaining; off= 0% the green light on when charging and stop when done. The LED red light of the base is power indicator. The red light flash 1time/5s means left 30% power; the red light flash 1time/3s means left 20% power, the red light keeps on to off means left 0% power. The LED green light would on when active and stop when done.
2.6 Press the eject button of the base to take off the GPS device.
3 Battery and working time
3.1 Battery for the GPS device: Li-ion battery: 3.7v 380mAh, Putting the GPS device on base for charging and would finish after 2 hours.
3.2 Battery for the Base (Docking station): 3.7v 6000mAh, Recharging can be full after 4 hours;
3.3 When the GPS device leaves from the base to work, it will keep working 72 hours in “single location” mode; and 5 hours in “many positioning” mode.
3.4 When the GPS device on base, it will keep working 480 hours in “single location” mode and 87 hours in “many positioning” mode.
4 Operation
4.1 Open the SIM card‘s seal cover from the back of the GPS device, then install the Micro SIM card. Close the seal cover to start;
4.2 Attach to the collar;
4.3 Attach to the base;
4.4 Take off from the collar;
5 Turn ON/OFF
5.1 When the GPS device leave the docking station more than 10m, the tracker (GPS device) will turn on automatically after 80s. Goes into the scope of 10 meters, the tracker (GPS device) will turn off automatically after 20s.
5.2 When the tracker (GPS device) in the scope of 10m of the docking station (base), Switch the docking station (base)’s ON/OFF button to “ON”, the tracker (GPS device) will turn on automatically after 80s. Switch the base’s ON/OFF button to “OFF”, the tracker (GPS device) will turn off automatically after 20s.
6 APP download
6.1 Scan Two-dimensional code on the box, download APP
6.2 Login “Apple store” or “google play” to down load “iFollowit”.
7 Network setting
7.1 The GPS device would identify APN automatically; install the Micro SIM card you could track from APP directly. However, our APN data base may not include all the APN and you may sent SMS to set the APN before tracking, please follow below steps:
7.2 Sent SMS<00000,123456apn,apn Text, apn User name ,apn Password>please leave blank if without user name& password;
7.3 you would get the reply: <FOLLOWIT,00000,device IMEI number,apn, apn User name ,apn Password,OK>。
Eg. take the example of China Mobile to set the APN: APN=cmnet User name= Pas word=.
text：00000,123456apn,cmnet,, (pay attention of the comma)
reply：FOLLOWIT,00000,865400000000000,apn,cmnet,,,OK
8 Positioning mechanism and positioning accuracy
The device will choose WIFI location (Optional functions) priority. If can’t track via WIFI; it will chose GPS location, if GPS is not workable, the device would choose LBS location. WIFI location accuracy is 20~100m; GPS location accuracy is 5-20m. LBS location accuracy is up to the GSM station density, More GSM signal stations, more accurate.
9 APP tracking
When turning on, blue LED light blinking fast. Open APP, Switch to “IMEI” to log in, input 15 digits of IMEI number (IMEI number on the back of host). Default password is 123456. After log in, click”>” so you can check the tracker’s current location.
9.1 The target picture “dog”, Full red = full Power; Full white = out of power; Red means online, Grey means offline.
9.2 Click the “i” on the upper left corner of the pet attribute. Input the SIM card number (please confirm it is right, if wrong, cannot use normally) . And if need, you can modify the device name. Then lock.
9.3 Click “Single Location”, your phone will call the device’s number, after hang up 1 minute, blue LED light will blinking fast, you can check the current location. Then the tracker will switch to “save power “sleep mode.
9.4 Click “Many positioning”, your phone will call the device’s number, after hang up 1 minute, blue LED light will flash fast, the tracker will get location every 30s.
9.5 Click “Stop”, it will stop the many positioning mode. Tracker will go to sleep mode.
Click more to modify APP password.
10 Notification center and alert
All alerts will send to “notification center” and APP desktop icon.
10.1 When the power less than 30%, it will alert “low batt”.
10.2 Press the SOS button for 3s; it will alert “help me”
10.3 When the GPS device left the base more than 10m, it will alert “out” after 150s.
11 Technical parameters
