Portable Smart GPS Tracking Locator Tools Choice Collections provide anti-theft loss gps,tracker positioner tools Fantastic Deals GPS Tracker Car Coban TK103A+GSM GPRS SMS Tracking Device Cut Off Oil Power System Dual SIM Card Door Open Alarm Free Software. Get Discount Now! Only US $44.54/piece at this time. Hurry buy Now before back to normal price! Normal price US $54.99 or you can Check price now. Dont waste your time. Buy Now only in Ertengtec Technology Co.,Ltd Trusted Seller Store!
Just as you will get a ton of money, this item is able to give a lorry that must be extremely intriguing for you. The item catalog you obtain is absolutely give a reference for those of you who want to locate the goods you desire.
Overview:

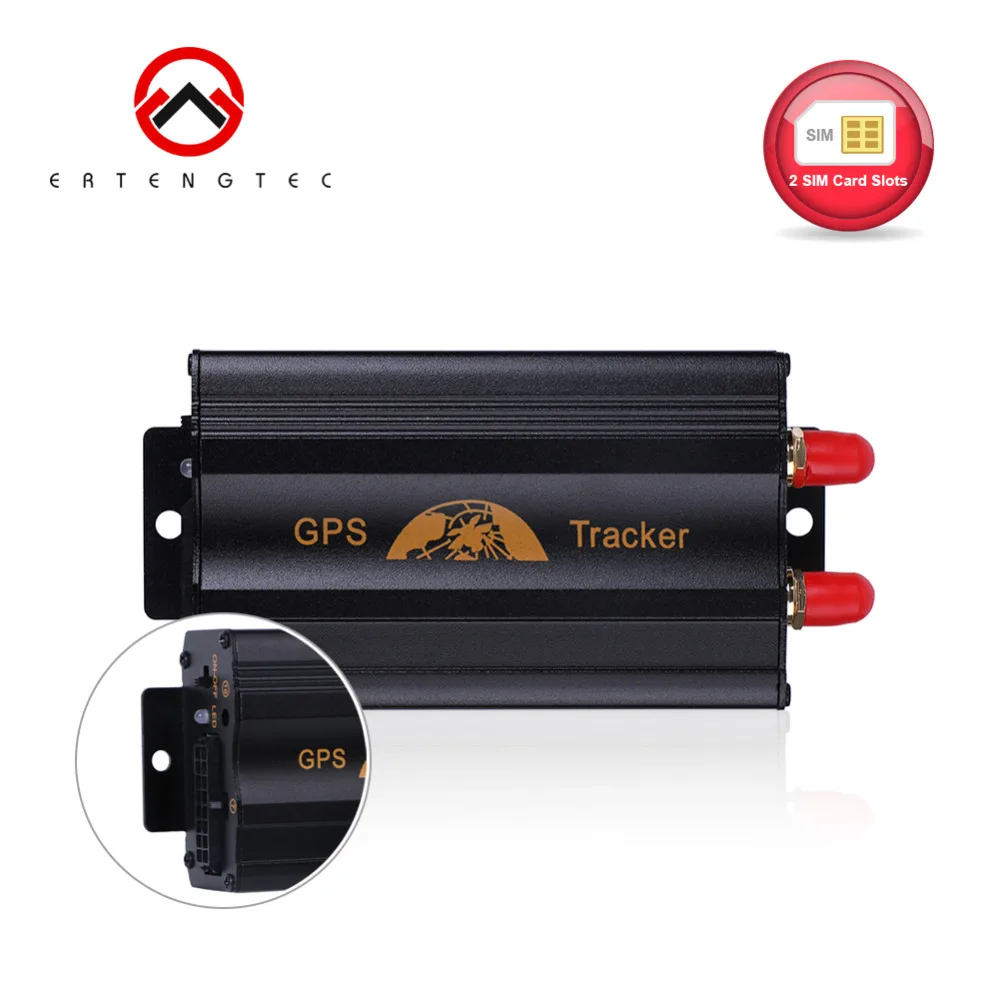

This GPS Tracker Coban TK103A+ is a car gps tracker which is supporting 2 SIM Cards and it is working based on the 2G GSM/GPRS network and GPS satellite positioning system. It set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS, Mobile APP and Web tracking platform.
Besides, this vehicle tracker TK103A+ is a full featured GPS tracker which is designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices. It is supported by a wide variety of accessories, such as fuel sensor, shock sensor, siren, remote controller etc. Its built-in GPS receiver has superior sensitivity and fast time to first fix.
Whats more, the tracking software for this device is free for using LIFETIME, you neednt pay any monthly or yearly fee for the tracking service!
Apperance:
Suitable for all kinds of car / vehicles of 12-24V.
Functions:
1. Dual Sim Cards
Device supports dual SIM card, but only one of them work with tracker, and switch to the other one automatically when it is broken, no GSM reception or no GPRS.
2. Electric / Air compressor lock switch
Send command “locktype+password+space+1”, tracker will reply “locktype OK”, and then switch to air compressor lock after 5 seconds.
Note: Relay For Central Locking (option, not including in the package)-- A very important optional accessory to realize the function of locking and unlocking.
3. Single Locating
If there has no authorized numbers been set up, tracker will reply to all calls with location report. If the authorized numbers been set up, then only authorized numbers will be able to receive location report from the tracker.
4. Auto track continuously
- Track with limited times upon time interva.
- Track with unlimited times upon time interval.
- Smart track upon time and distance interval, this function means that the device can be tracked by preset distance and time interval two factors.
5. Automatic update positions of vehicle turns
The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function works only in GPRS mode.
6. GPS drift suppression
This function is deactivated by default, send "suppress+password" to tracker, it will reply" suppress drift ok". The GPS data stop updating if vehicle is not driving (ACC is OFF) and latitude and longitude always keep same, and GPS data updates automatically when vehicle is moving.
7. Exact street address
After configure the APN, send "address+password" to device, it will reply SMS including real street/address name. For example: No.113, Guankou 2nd Rd, Nantou, Nanshan district, Shenzhen, Guangdong, china.
8. Location based service (LBS) / Cell-ID Locating
9. “track” and “monitor” modes switch:
The default mode is “track” (Track mode), if you want to monitor the voice around the device please send "monitor+password" to tracker to switch it to monitor mode, then you make call to the SIM number in the tracker you will can monitor the voice around it; you can send "tracker+password" to swtich the device back to track mode.
10. Data logging
- Auto logging: When the tracker device lost GSM signals or fall offline from GPRS, tracker will log the tracking position and alerts automatically in the SD card on the basis of the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or monitoring platform (server), but the logged tracking data should be loaded to the monitoring platform via SMS command.
- Logging upon times: Send SMS: “save030s005n+password” to the tracker unit, it will reply “save ok”, and will log the lat, long locations every 30 seconds for 5 times. (S: second, m: minute; h: hour).
- Multi-logging: Send SMS:”save030s***n+password” to tracker device, it will reply “save ok”.
11. Data Load
- Current date Load: Send SMS: “load+ password” to tracker device, it will reply: “load ok” if the device is working well under GPRS mode; if not, it will reply “load fail! Please check gprs” that means device does not work under GPRS mode.
- Specified date Load: Send SMS: “load+ password+ space+ year month date” to tracker device, it will reply: “load ok” and load the tracking data to the web platform upon the valid time you choose. For Example: send SMS:“load123456 20110425” to the tracker device, means to load the tracking data of 25th April 2011 to web platform.
12. Forward the third parties’ message
13. SIM card Balance Inquiry
Send SMS command "balance+password+space+carrier’s phone number+space+code" to tracker, it will forward the code to carrier’s phone number and return the balance message received from carrier’s phone number.
14. ACC working alarm
Send "ACC+password" to active the tracker, it will reply "ACC ok". And tracker will send "ACC on+latitude & longitude" to authorized numbers when detect ignition on.
15. Cut off the Oil and Power System
Send command “stop+password” to tracker, tracker will execute it and reply “Stop engine Succeed”. And it will remain immobile state until next command to resume.
16. Calibration of fuel sensor
Due to the different height of fuel tank and fuel level sensor specifications, tracker need to set an appropriate zero value and full range value to detect the precise fuel percentage
17. Arm
- Send “arm+password” to tracker, it will make the car enter ARM states and lock the door at the same time, and reply “Tracker is activated”.
- If the car is in ignition (ACC is at “ON” position), then the car can’t enter ARM state, but it will lock the door and reply “set up fail! pls turn off ACC”.
- If engine turned off, but door is open, then the car can’t enter ARM state and reply “set up fail! pls close the door”.
18. Disarm
Send command “disarm+password” to tracker, tracker will disarm and unlock door and reply “Tracker is deactivated”, then it will turn off the alarm of door, shock sensor and ACC, and no alarms if open door, trigger shock sensor and ignition.
19. Multiple modes
- Silent Mode: Send “silent+password” to tracker, it will reply “silent ok!” that means tracker enters ARM & silent mode. Siren won’t be sound after alarm is triggered, but tracker will send alarm SMS to authorized number.
- Sleep Mode： When ACC Off, No Calling, SMS and any triggered alarm, GPRS will disconnect and switch to SMS mode,go to sleep. ACC on , Calling, SMS or any triggered alarm can awake it, and GPRS connect.
20. Decide how many times of alarm message
You can decide how many times of the alarm message to be sent, for those alarm messages are sent in cycle, you can limit the times the alarm message to be sent.
21. Alarms
- Low battery alarm
- Power off alarm: Send “extpower+password+space+on” to activate, it will send SMS “power alarm+latitude/longtitude” to authorized numbers every 3 minutes when external power is cut off.
- GPS blind Spot alert: This function deactivates by default, send SMS “gpssignal+password+space+on”, it will send alert SMS “no gps+last valid latitude/longitude before lost signal” to authorized numbers.
- Geo-fence: Set up a geo-fence for the tracker device to restrict its movements within a district. The unit will send SMS to the authorized numbers when it goes out of this district.
- Multi-area management: Send SMS command "area+password+space+on" to tracker, it will reply "Area on ok!", when tracker enter the pre set area, it will send SMS "area name+latitude & longitude" to all the authorized phone number, and send same SMS when goes out of the area
- Movement alarm: When the unit stays immobile in a place for 3-10 minutes with GPS signal reception, the user can send SMS“move+password+space+0200” to the tracker (Suppose area of a radius of 200 meters, it supports 4 digits at most. Unit: Meter). It will reply “move OK”. In case of such a movement (the default distance is 200m), it will send SMS “Move+ latitude & longitude” to the authorized numbers .
- Over speed alarm: When the speed is over the presetted, the siren will beep 1 time when overspeed 1 time.
- Fuel alarm: When the fuel consumption exceeds the normal standards during driving, or oil theft/leakage when the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at interval of 3 minutes. The horn beeps 20S.
22. Alarms under ARM State
- ACC alarm: The unit will send SMS “ACC alarm+lat/long” to the authorized number in at interval of 3 minutes when the engine of the car is turned on, that is the key is rotated to “ACC ON” position to start the car in arm state; Siren will be sound for 20 seconds, and repeat again at interval of 20 seconds if the ACC always keeps ON.
- Door open alarm: The unit will send SMS “Door alarm+lat/long” to the authorized number at interval of 3 minutes when the door of the car opens in arm status. Siren will be sound for 20 seconds, and repeat sound at interval of 20 seconds if the door is always open. Disarm to stop this alarm.
- Built in Acceleration Sensor Alarm: The tracker is built in three axis acceleration sensor, the tracker can detect it in arm state when the vehicle move, tilt or shock. The alarm way is same as the external shock sensor alarm.
- Alarm without GSM network service: When the car is in the place without GSM network service, siren will be sound under non-silent mode if alarm is triggered (door, sensor, ACC), but won’t send SMS alarm to authorized number.
23. Check IMEI
Send SMS command "imei+password" to the unit. E.g. Send SMS command "imei123456" to the tracker device, an IMEI number in 15 digits will reply to your cell phone.
24. Less GPRS traffic
Tracker will change to less GPRS traffic mode after parking 5 minutes (ACC is OFF), GPRS disconnect and connect again when alarm being triggered or vehicle starts driving.
25. Check the Vehicle State
26. Terminal (local) Time Setting
27. Reset Hardware
28. Configure parameters by USB
29. GPRS Setting
Specifications:
| Content | specifications |
| DIM. | 87*54*26mm |
| Weight | 130g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
| Voltage of car power system | 12 V-24V |
| Backup battery | Chargeable 3.7V 500mAh Li-ion battery |
| Special Feature | Support 2 SIM Cards |
| 16 PIN Harness | Yes |
| Humidity | 5%--95% non-condensing |
1 * Siren (Optional)
1 * Remote Controller (Optional)
1 * Shock Sensor (Optional)
1 * Fuel Sensor (Optional)(No Sim Card and SD Card Included)
