Portable Smart GPS Tracking Locator Tools Choice Collections provide gps tracking navigator,gps tracker,vehicle tracking locator,travel satellite locator 2018 Deals Mini GPS Tracker Personal GSM Locator Car Tracking Device XEXUN TK102-2 SIRF4 Quad Band Standby 120h SD Slot Free Web Tracking. Get Discount Now! Only US $66.68/piece at this time. Hurry buy Now before back to normal price! Normal price US $88.91 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
An excellent product or service is developed as well as given of program to offer ease as well as make you comfy when you utilize it. One of these goods is truly extremely understanding of your needs for this special goods.
2. Quad band 850/900/1800/1900Mhz
3. GSM/GPRS Moduel:Simcom SIM900
4. Battery 1000MAh,long standby time up to around 120 hours. 5. It can be used for personal and pets, also can be used for vehicles.
6. Support Web tracking/APP Tracking/SMS tracking 7. Life time Free web tracking software.
Overview:
This product TK102-2 is a Mini GSM Bug GPS Locator which is working based on the existing GSM/GPRS network and GPS satellites, it supports locating and monitoring any remote targets by SMS or GPRS (Web server and APP). Besides, this is 100% Genuine
XEXUN TK102-2, you will can verify the IMEI number on the official XEXUN website: .
Applications:
* Rental vehicle / Fleet management etc
* Protect the child / the old / the disabled / pet etc
* Protect businessmen
* Personnel management
* Covert Tracking

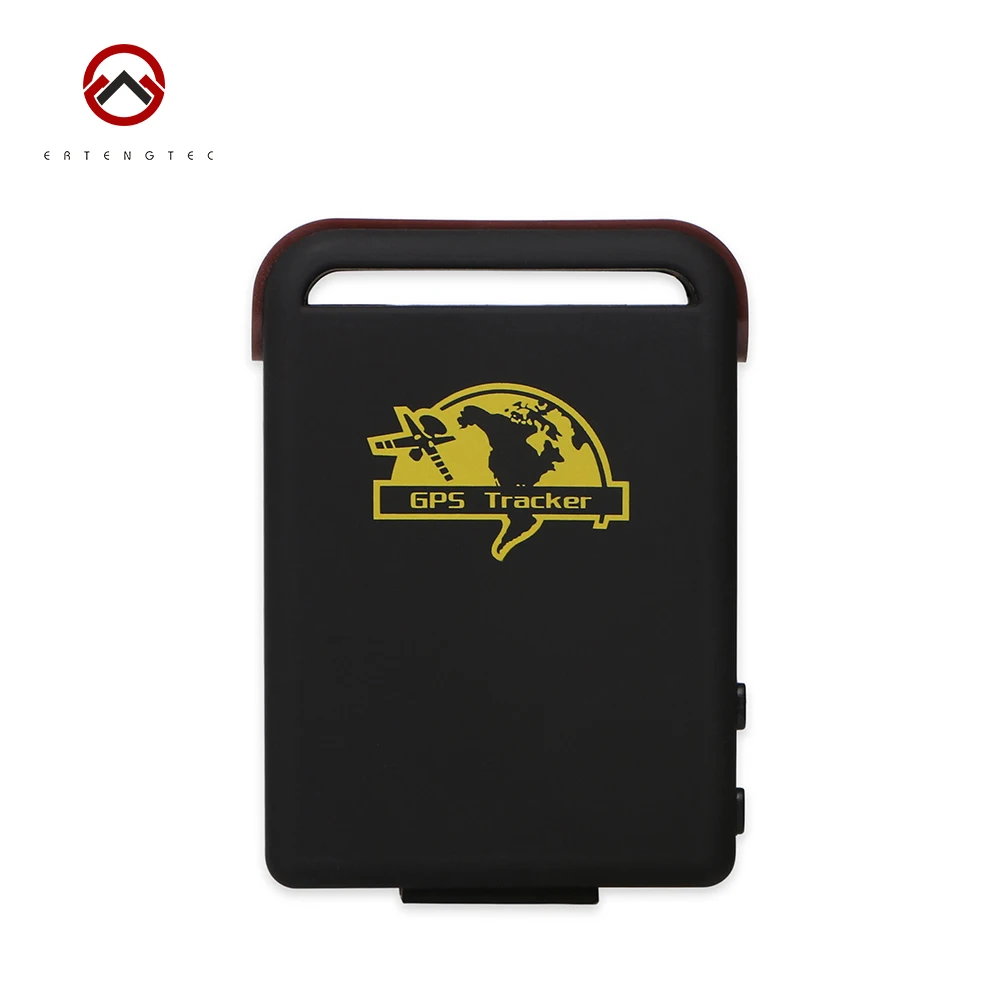

Appearance:
Specifications:
| Model name | TK102-2 |
| Dim. | 64mm x 46mm x 17mm |
| Weight | 50g |
| Network | GSM/ GPRS |
| Band | GSM850/900/1800/1900Mhz |
| GPS chip | SIRF4 chip |
| GSM/GPRS module | Simcom900 |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
| Car charger | 12-24V input 5V output |
| Wall charger | 110-220V input 5V output |
| Battery | Chargeable changeable 3.7 V 1000 mAh Li-ion battery |
| Standby | 120 hours |
| Storage Temp. | -40 centigrade degree to 85 centigrade degree |
| Operation Temp. | -20 centigrade degree to 55 centigrade degree |
| Humidity | 5%-95% non-condensing |
Functions:
1. Authorization: You can set 5 authorized numbers at the most for the device.
* Call the tracker for 10 times, it will make the cell phone number as the authorized number automatically.
* Send SMS admin+password+space+cell phone number to set up an authorized number. The other authorized numbers should be set by the first authorized number. If the number is successfully authorized, the unit will reply “admin ok!” in SMS.
NOTE: For roaming purpose, you have to add your country code ahead of the cell phone number, for example, please send admin123456 008613322221111 to tracker to set 13322221111 as an authorized number.
* When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as below:
Lat: 22.566901 long: 114.051258 speed: 0.00 14/08/09 06.54 F:3.85V,1,Signal:F help me imei:354776031555474 05 43.5 460 01 2533 720B
Lat: 22.566901 long: 114.051258 == Coordinate
0.00 == speed
14/08/09 06.54 == Date&Time
F:3.85V == battery power
1 == charging 0 means no charging
Signal:F == Full GPS signal 0 means weak GPS signal
help me == the SOS message, this section is blank for tracking message
354776031555474 == IMEI
05 == Means you get 5 GPS fix ( from 3 to 10 )
43.5 == Altitude
460 == MCC Mobile Country Code
01 == MNC Mobile Network Code
2533 == LAC Location area code
720B == Cell ID
2. Real-time polling:
If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up.
3.Auto-Track:
You can set a time interval and limit times on the device for automatically tracking, for example: Send SMS t030s005n+password to the unit, it will report the Geo-info at 30s intervals for 5 times.(s: second, m: minute, h: hour). The setting must be in 3 digits and at maximum 255 in value. NOTE: The interval must not be less than 5s.
4. Tlimit Function:
Tracker will just positioning after it moved out of the setting distance, for example, after you sent “tlimit123456 50” (50 == Distance, 1<Distance<6000M), then the tracker will send a position information to the user after it moved 50m. This function is used for save GPRS traffic. NOTE: This function must work together with the automatic positioning function.
5. GPS-refresh setting:
Send SMS “GpsAutoSearch123456 120”，it will reply “GpsAutoSearch ok”. The tracker will search gps signal in 120s interval after setting this. The refreshing time is between 120-600 seconds(120<interval <600)
Note: Longer standby time for longer refreshing time and shorter standby time for shorter refreshing time.
6. Monitoring Mode:
Send SMS monitor+password, the response from the tracker is “monitor ok” In this mode, the user can dial up the unit to hear the voice around the tracker after your call.
7. Modes switch between “track” and “monitor”:
The default mode of the tracker is “track”, users can switch the working mode between the "Monitor" and "Track".
8.Geo-fence:
Set up a geo-fence for the unit to restrict its movement within a district. The unit will send message to the authorized numbers when it moves out of the district. Notes: This function will be invalid if the unit moves outside the district. You need to re-set it if you want this function again.
9. Movement alert:
This function is using for the owner to get alarm when the tracker moves out of a restricted district.
10.Overspeed alert:
This function is using for the owner to control the target’s speed.
11.SOS button:
Press the SOS for 3 second, it will send “ help me !+ Geo-info” to all the authorized numbers every 3 minutes. It will stop sending such a SMS when any authorized number reply SMS ”help me!” to the tracker.
12. Low battery alert:
It begins to send SMS to the user every 30minutes when the the battery voltage is 3.7V.
13. GSM ID:
There is GSM ID in each SMS from the tracker. The location of the tracker can be found according to the GSM ID in case of no GPS signal. GSM ID is make up of MCC(Mobile Country Code),MNC(Mobile Network Code),LAC(Location area code) and Cell ID
14. Motion Sensor:
This function is using for the user to get alarm info when someone touch the unit.
15. SD card function:
A mini SD card (1G or 2G) can be put in the tracker’s SD card slot. The GPRS data can be saved in the SD card if GPRS is off. It will send data to the GPRS server again if GPRS is on.
16.Time Zone setting
17.SMS LINK:
Send “smslinkone+password”, This product will reply a GOOGLE link to admin number.The position can be checked directly for one the smartphone Format: 0.00 12/11/10 14:36 F:4.22V Signal:F imei:012207000691839
18. SMS ONE:
Send “smsone+password”.The tracker will reply one SMS with location to authorized phone number .
19. Life time free web tracking service
20. Our GPRS supports TCP or UDP protocol, it can be configured to your own web server easily.
About Web Tracking Software:
Life time free web tracking platform: 183.90.185.204
You can use this demo account to have a try. user name:ikbalPassword:123456
About ANDROID APP Tracking:
Please note It just can support Android APP,Search "GPS TRACKER" in the Android App Store or Scan the QR Code to install the applications on your Android cell phone.you can use this demo account to have a try. user name:ikbal Password:123456
(No SIM Card and SD Card Included)
