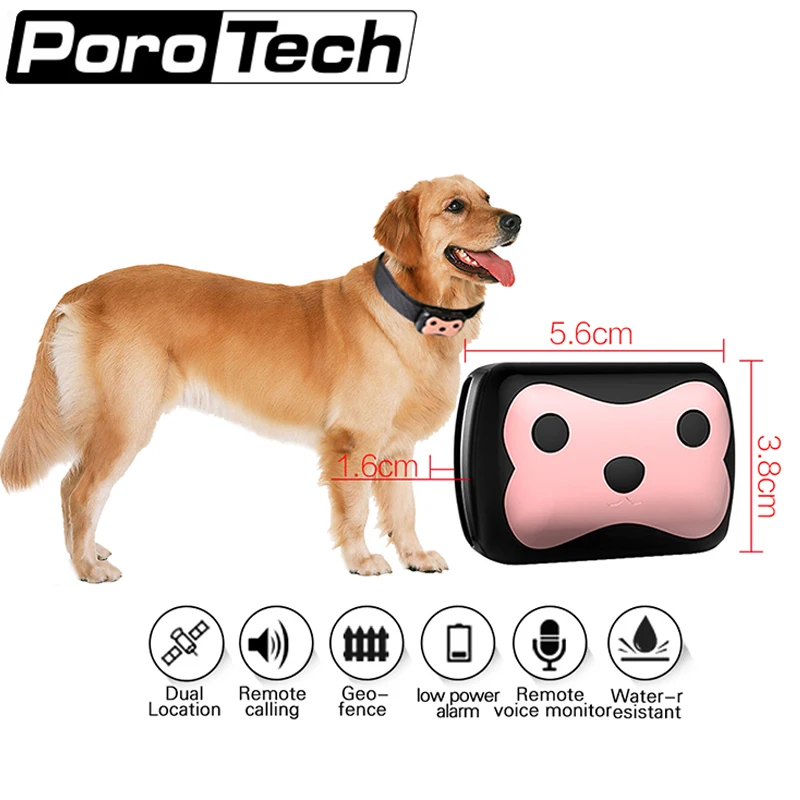

Big Stock Promo D69 5PCS/lot Pet Dog GPS Tracker APP tracking Mini Tracking Waterproof for Welsh Corgi Labrador Pitbull Husky Alaskan Akita smart gps tracker Rating: 5 out of 5
Portable Smart GPS Tracking Locator Tools Choice Collections provide travel satellite locator,gsm tracker monitor,portable keychain locator Big Stock Promo D69 5PCS/lot Pet Dog GPS Tracker APP tracking Mini Tracking Waterproof for Welsh Corgi Labrador Pitbull Husky Alaskan Akita. Get Discount Now! Only US $167.32/lot at this time. Hurry buy Now before back to normal price! Normal price US $178.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Portable Smart GPS Tracking Locator Tools Choice Collections provide travel satellite locator,gsm tracker monitor,portable keychain locator Big Stock Promo D69 5PCS/lot Pet Dog GPS Tracker APP tracking Mini Tracking Waterproof for Welsh Corgi Labrador Pitbull Husky Alaskan Akita. Get Discount Now! Only US $167.32/lot at this time. Hurry buy Now before back to normal price! Normal price US $178.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Main Feature:
1.1Blue LED-GPS Indication
Light station Meaning
Quick flash GPS location success
Continuously in bright status Search GPS signal
Sleeping mode Light off
1.2 Yellow LED-GSM Indication
Light station Meaning
Quick flash GSM / GPRS location success
Continuously in bright status No GSM signal
Sleeping mode Light off
1.3 Charge indicator change
When charge the device, The equipment indicator is flashing staggered blue and yellow, when full charge, the yellow and blue indicator will be light off
(Charger requirement: <5.0V = 2000mA)
2.DEEST69 quick guide
2.1 SIM card installation
Follow the direction shown to insert the 2G-GSM-SIM card (suggest to open GPRS network data 30M / month)
Notes:
Please use a SIM card adaptable to 2G-GSM network;
Terminal SIM card needs to open up the caller ID display function.
The PIN code of terminal SIM card closed.
Terminal SIM card needs to open up the GPRS function.
2.2Device starting
2.2.1 After insert the SIM Card, long press power on / off key until the indicator light on and then release the on / off key.Device successfully works if GPS indicator light flash.
3. APP operation:
3.1 Download the app
Scan the QR on the bottom of the manual
3.2 Log-in
Open the APP UI and choose the device ID to log in on the bottom of the app Then entrance ID :. 10 digits on the device, Default Password: 123456 to log in
3.3 Anti - Harassment
Factory-default allows any number to call the device.
But device can receive calls only from users on the white list, in addition to the main number and emergency numbers, to avoid unwanted calls after set the main monitor number.
3.4 Real-time Tracking
| Category | Parameter | Function | Description |
| G/W | 216g | Location | GPS+LBS Location |
| Dimension | 56X38X16mm | Call Function | One way to call the device and Voice Monitor |
| Packing Size | 91X91X67mm | Geo-fence | Yes |
| Color | Black | Historical route | 90 days route checking |
| Button | ON/OFF Button | Low power alarm | Power Less than 10%,will alarm to the APP |
| GSM | MT6261 | ON/OFF Button | No GSM Signal can turn off Have GSM Signal cant turn off |
| GPS | MT3337 | Remote turn off | Remote turn off device in APP |
| GPS channel | 20 channels | Do not disturb mode | Set the center number and white list number in advance, then it will reject the strange number |
| GPS Sensitivity | （-159DB） | White list | More number can call and voice monitor the device after set the white list |
| GPS Accuracy | 5-15M | APP support | Above Android 2.3, IOS 5.0 |
| LBS Accuracy | 100--1000M | Firmware Language | Polish, Vietnamese, Turkish, Arabic,Norwegian,German, French, Spanish, Portuguese, Italian, Russian, Chinese and English |
| Operating temperature | （-20--50 degree） | Update software | Remote update |
| Device Language | Chinese,English | Firmware Map | Google、Baidu、Amap、Tencent、OpenStreetMap |
| GPS Antenna | High sensitivity ceramic antenna | ||
| GSM Antenna | large area of FPC gold-plated antenna | ||
| Battery | 500 mAh Gel polymer | ||
| GSM frequency | 850/900/1800/1900 | ||
| Speaker | Minimum speaker 1810 | ||
| I / O Interface | pin charging | ||
| waterproof Level | IP58 | ||
| 30s update | about 50 hours | ||
| 10m update | about 70 hours | ||
| 1hour update | standby 5 days | ||
| charger indicator | light | ||
| belt | Nylon belt, belt to be customized | ||
| Paint case | Piano paint | ||
| Carton Size | (52sets)43X43X20CM |
Question and Answer - l How to Set GPRS Parameters
Most of the countries’ GPRS Parameters is including in the device when is out of the factory; If the device can’t location and offline, please send SMS of setting the GPRS Parameters, to set the APN of the SIM Card in the device, to make the device normal work.
Different Countries and different GSM Operators, the APN is Different, Please consult with your local Operator to know the APN of the SIM Card.
Instruction format: pw,123456,apn,network name#
Example: pw,123456,apn,cmwap#
The “cmwap” in the example is representative the APN of China Mobile Operator.
If successfully to set the APN, it will reply a message show “APN set successfully”.
- When using the mobile to call the device it shows: the dial number is on a call, it means the SIM Card don’t open the caller ID display, pls open the caller ID display
- After set instruction on the APP, it always shows is under sending or fail to sent:
A: it may don’t have the GPRS Network signal or bad signal, so it can’t send the GPRS data
B: The SIM Card didn’t open the GPRS, suggest to open the 30M GPRS data per month
C: Device is on a call, When make a phone call GPRS data transmit automatic close
Device on APP is always offline:
A: the SIM Card don’t have the money, can’t transmit the data and make phone call
B: Device don’t turn on or power off
C: There is no signal or weak signal ( Mainly shows the device can’t transmit the data to the server)
- The position of the device is far away from the physical location about several hundred meter: Device is under LBS location, The accurate location of LBS is due to the LBS density of the device’s physical location, the normal accuracy location about LBS is between 50-1000 meter. ( Log in the web server, Under the more information about the device to filter LBS, It means to close the LBS)
