2018 New VJOYCAR T191 Tail Lamp Easy Locator Bike GPS Tracker Bicycle Alarm System Waterproof 2600mAh Battery Free Tracking Software

2018 New VJOYCAR T191 Tail Lamp Easy Locator Bike GPS Tracker Bicycle Alarm System Waterproof 2600mAh Battery Free Tracking Software Rating: 4.1 out of 5

Portable Smart GPS Tracking Locator Tools Choice Collections provide vehicle tracker,intelligent tracker,gps tracking navigator 2018 New VJOYCAR T191 Tail Lamp Easy Locator Bike GPS Tracker Bicycle Alarm System Waterproof 2600mAh Battery Free Tracking Software. Get Discount Now! Only US $57.68/piece at this time. Hurry buy Now before back to normal price! Normal price US $76.90 or you can Check price now. Dont waste your time. Buy Now only in VJOYCAR Official Store Trusted Seller Store!

Inexpensive cost as well as totally free shipping. Allow's buy before rates increase.

Excellent choicemodname=ckeditor

Attention:

1.This is 2G GPS tracker, can’t work in Austrlia, Singapore, South Korea, Japan. If you are from above countries, please kindly buy 3G gps trackers: 2.BUY ONLY FROM “VJOYCAR” FOR VALID WARRANTY AND TECH ASSISTANCE BASED ON “ORDER NUMBER”.

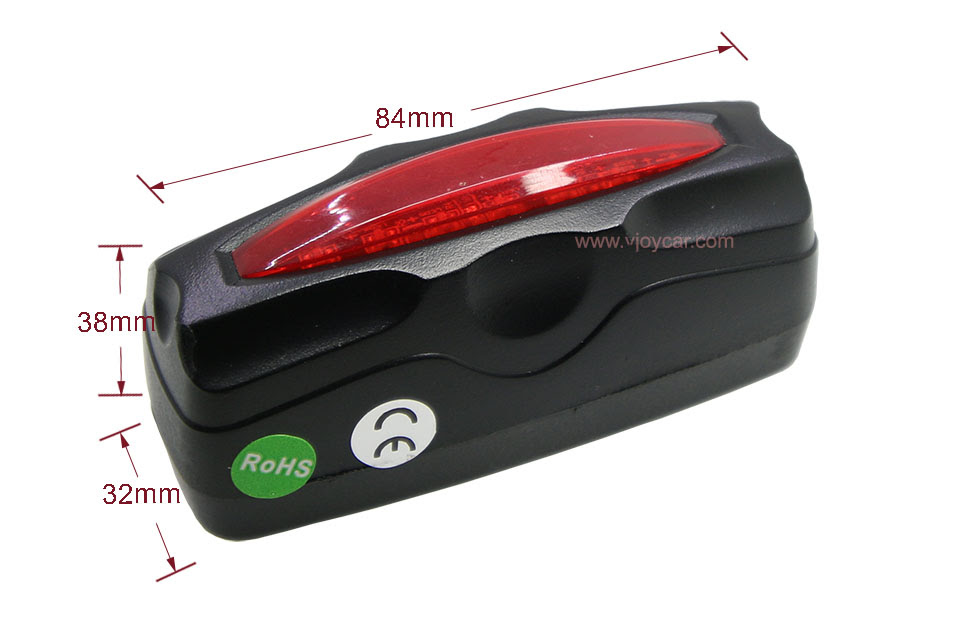

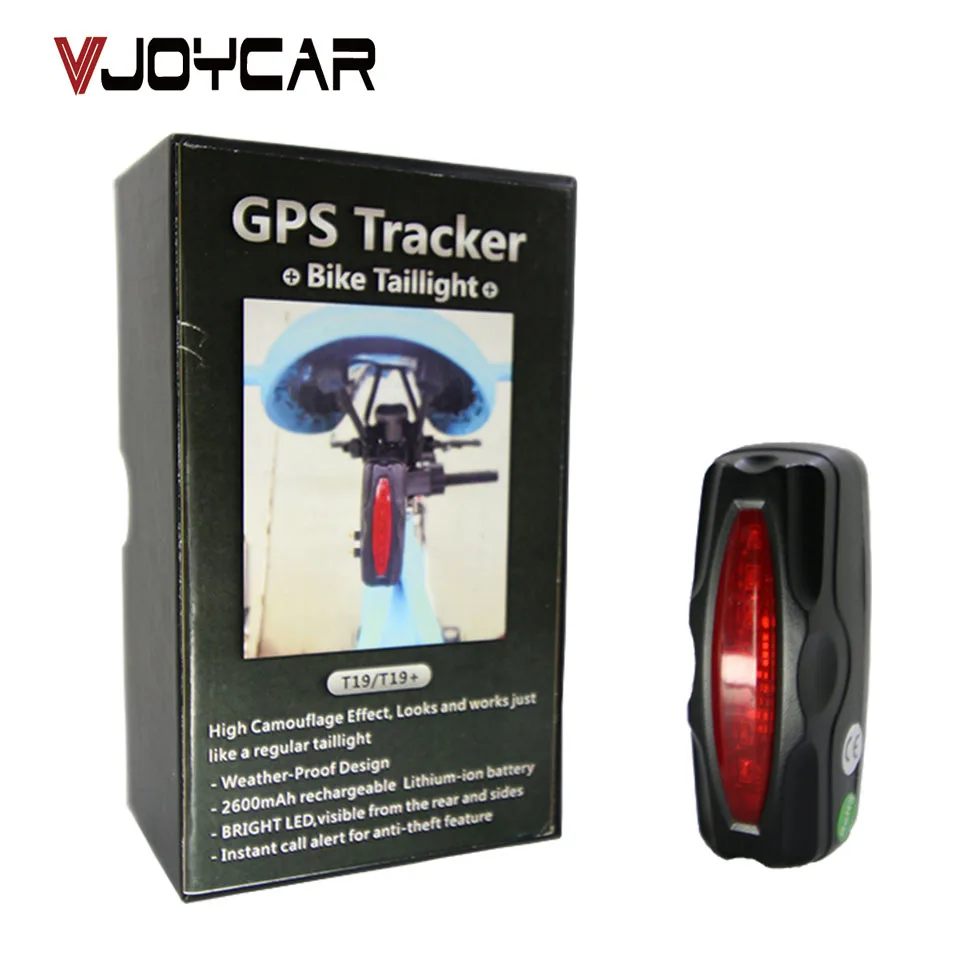

Product Photo Gallery
Install Photo

Product High Lights
1.Wonderful design-tail lamp/brake light bike GPS tracker:hiding well,waterproof,easy install. 2.Movement sensor combine with Industry battery. 3.Easy to use. 5 Minutes to fix the holder on the bike. 4.Anti bike theft.Its with built in GEO fence and Motion Sensor. Once it accross the fence pre-setted,it will send call or SMS alert; once it detect motion, it will send call or SMS alert also.
Main Features
1.Waterproof design:IPX7; 2.2200mAh rechargeable Lithium-ion battery,just need charge once a month.Before battery run out,it will send SMS alarm to the mobile phone to notify. 3.Bright LED,visible from the rear and sides. 4.LED working on automaticallywith motion. 5.Instant call alert for anti-theft feature.GSM 850/900/1800/1900 quad band,can be used on every country. Built-in GPS/GSM antenna. Web based real time tracking platform. Can be tracked via SMS from the mobile phone. Built-in watchdg CPU to avoid system crash. Built-in motion sensor to save power. Size:110*40*50mm
Hardward Teach specification
Storage Temp: -40 to 85°C Operating Temp: -10 to 55°C GPS: U-BLOX G6010-ST, 50 channel Antennae: Internal Frequency: L1 1575.42 MHz Position Accuracy: <5m Sensitivity: Tracking: –161 dBm Cold starts: –148 dBm Hot starts: –156 dBm Cold start: <27s Warm Start: <5s Hot Start: 1s A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant GPRS: MTK 6260D Quad band; 850/900/1800/1900 MHz GPRS Class 12 Antennae: Internal Power: Rechargeable, 2200 mAh, Lithium-Ion Battery Built-in Vibration/motion sensing
SMS Commands List
Function Command Description
APN Setting *apn*AXXX*BXXX*CXXX* This command sets the telecom Access Point Name. BXXX refers to user name, CXXX refers to password. eg,*apn*cmnet*
Master Setting

*master*123456

*+1XXXXXXXXXXXX*

+1 refers to the country code. XXXXXXXXXXXX is the cellphone number. Please make sure country code is included, and 0 is not needed before cell phone number eg,*master*123456*+8613621925935*
Password Changing *password*654321* Original password is default as 123456. 654321 refers to new password.
Vibration Sensitivity Setting *sensitive*1-5* 1 being the most sensitive, 5 the least. Default setting is 1.
Motion Alert *callalert* Call alert will call master number 2 times when motion is detected after 3 minutes non-movement.
*smsalert* SMS notification will sent to master number when motion is detected after 2 minutes non-movement.
*alertoff* End Call/SMS alert
Period Motion Alert On *continuousalert* 0-23*0-23*

Device will enable motion alert function at appointed period of time Remark: Only TK05 TK10 Tk15 TK20 have this function.

*periodlocateoff*

End Period Motion AlertRemark: Only TK05 TK10 Tk15 TK20 have this function.

LLC Query *locate* Latest information of latitude, longitude, date, time and ranking.
Address Query *locateaddress* Address information of current location.
Google Map Search *locatemap* Google Map link with current location
Real-time Tracking *routetrack*1-99* 1-98 represents hours of accumulated data, 99 means always on. eg,*routetrack*1*
(routetrack,rsampling and rupload only upload data when device is moving.)
Sampling Interval *rsampling*1-999* 1-999 represents seconds of data collecting interval, default as 10 seconds. eg,*rsampling*10*
(routetrack,rsampling and rupload only upload data when device is moving.)
Upload Interval *rupload*60-999* 60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60. *rupload*60*
(routetrack,rsampling and rupload only upload data when device is moving.)
Real-time Tracking Off *routetrackoff* End routetrack function.
Check Location *check*0-99* Track by hour. 0-99 represents hours of data upload interval, default as *check*0* eg, *check*1* (check and checkm upload data when device both stationary and moving.)
*checkm*10-99* Track by minute. 5-99 represents minutes of data upload interval eg,*checkm*10*
(check and checkm upload data when device both stationary and moving.)
*checkoff* / *check*0* End check function
Period Tracking

*periodlocate*

XXXXXXXX**XXXXXXXX*

GPS location data will be uploaded to server at appointed periods, up to 3 time periods. Remark: Only TK05 TK10 Tk15 TK20 have this function.
*periodlocateoff* End period tracking function. Remark: Only TK05 TK10 Tk15 TK20 have this function.
Appointed Time Tracking

*timinglocatemap*

XXXX*XXXX**XXXX*

Check map location at appointed time Remark: Only TK05 TK10 Tk15 TK20 have this function.
*timinglocateoff* End appointed time tracking function Remark: Only TK05 TK10 Tk15 TK20 have this function.
Upload Alert *uploadalert*on* All alerts will be uploaded to server
*uploadalert*off* End upload alert function
Online Control *onlineon* Enable online control function
*onlineoff* End online control function
Deep Sleep Setting *sleep*1-99* 1-99 represents hours of deep sleep period.eg, *sleep*1*Remark: only portable trackers have "sleeping" function.
Period Motion Sleep * sleepv*1-99* Period Motion Sleep. 1-99 represents hours of deep sleep period. eg, *sleepv*1* Remark: only portable trackers have "sleeping" function.
Motion Sleep * sleepv* Motion Sleep function with motion alert.Remark: only portable trackers have "sleeping" function.
Sleep Off *sleepoff* End Deep Sleep function. Remark: only portable trackers have "sleeping" function.
Status query *status* Check system status
Multi Controller *multiquery* Enable multi controller function
*multiqueryoff* End multi controller function
Device Information *about* Software edition information and device’s serial number.
Fast Guide To Test Our GPS Tracker

Step 1. Get a active SIM card with both GSM SMS and GPRS data service.

Make sure the SIM card can send SMS and have GPRS function;

Step 2. Insert the SIM card, and make sure install the over properly.

Because only when you install the cover, then the screw will be fit strongly and the device will have power supply.

Step 3. Check Installation.

Call the tracker SIM card, and see whether its with signal. If it can ring, but wont pick up the phone, it means the SIM card is with signal, and you can go next.

Step 4. Set the APN.

Its very important. Eg, your APN is internet, and no login user and password, then you just need send :*APN*internet* (dont allow cap letter here!)(it will reply to you whenever the APN command is wrong or correct. However, only when you set the right APN, it can be combined with our web platform. Therefore, if you didnt get any reply, then please kindly check whether your SIM card is with active GPRS or GSM SMS service, or whether your sim card is fit well.

Step 5. Set the master number.

Its very important also. The right command is:*master*123456*+45XXXX*,eg, if you use your own mobile phone is 004511111111,thenthe master command will be: *master*123456*+4511111111*

Step 6. Login into web tracking platform.

After set the right apn and master number, then you can go to our web platform: www.miitown.com input the master number and password to login in.

Please pay attention, default password is 123456, user start with country code 00.Eg,00451111111,not +4511111111 .At this step, if you set APN correctly,then you could see your gps device location now.

AT the same time, you can send *locateaddress* and your phone will receive the detailed address include street name.

If you still have questions during testing, please don’t doubt to contact with us, we are on skype for fast assistance always: vjoycar

Free Web Tracking Platform

FAQ For VJOY GPS
1)Can your gps trackers work in our countryAnswer: As long as your country has regular 2G GSM network. If you use 3G SIM card or 4G SIM card, before testing,make sure it has 2G GSM service.2) When I send SMS to it,it don’t reply GPS location, only LBS location.Answer: your gps tracker is indoor? Please make sure it’s outdoor. No heavy rain, then the signal is good.Still LBS location?Then, pls send *0000* to check its statas, or try to on the routetrack or cheakm function.3) Under *sleepv*mode, does the gps and gsm module work still?Answer: No. Both GSM and GPS don’t work. When you send sms or call the device, no answer at all. Only when the device detect motion, it will wake up and send you the location.4) Under *sleep*3*,does the gps and gsm module work?Answer: No. Both GSM and GPS don’t work. When you send sms or call the device, no answer at all. It only wake up after 3 hours later.5) Can I wake it up if under deep sleeping mode eg: *sleepv* or *sleep*3*Answer: No, it can’t wake up remotely. *sleepv* only wake up when it detect motion; *sleep*3* only wake up after 3 hours. Can’t wake the GPS trackers by sms remotely. However, if you press the “on” button for 10 times by hand to wake the device up.6)When I set sleeping mode for my deivce, then power off the device, and power on again , can it remember the old setting?Answer: Yes, it can. However, it will stay “ waking up” for 12 minutes because it treat you “power on/off” as motion. After 12 minutes, it will login into sleep mode again.7) What does “ route track” command mean?Answer: routetrack default setting is: collecting interval = 10seconds, and uploading interval=60seconds. IF you want to set the routetrack function detailed,please kindly use rsampling and rupload command.8) What’s the difference between “routetrack” and “rsampling” / “rupload”Answer: routetrack is a rough setting with collecting interval = 10seconds, and uploading interval=60seconds. However, rsampling is used to set the detailed collecting interval, and rupload is used to set the detailed upload interval.9) T16 bike lamp looks bad because it will attractive the bike theft notice, we want it to be a faulty lamp always, Can I ?Answer: yes,just press the “on/off” button for 3 times to turn off the light always.10) Does your device has the identifies function for its insertedSIM card?Answer: yes, when the SIM card is moved out, and insert a new SIM card, it will send a alert to the master controller number: mobile 000000000000000(device SN number) has changed to this phone number.11) Hong long can the battery last?Answer: pls kindly check our battery testing report here. All of our device are using the same battery, the only different is the capacity.12) What’s the battery current?Answer: when gps tracker is under standby mode, its current is 2-3mA;When GPS is working, the current is 50-80mA;When it’s uploading data, the current is 100-200mA.13) Can I combine your gps trackers on our own web tracking platform?Answer: yes, of course, if you need, pls kindly contact with us to ask for our hardware communication protocol.14) What’s the format to transfer the default IP from your server to our server?Answer: the format sample is as below:If your server is:IP: 89.207.145.86Port: 2045Then the command is:*setip*89*207*145*86*2045*Please pay attention: once you transfer the default server from ours to your own, it can’t be changed back again. It’s singe travel change.
Factory Show

VJOYCar factory has around 200 workers, very good quality control; all products have CE certification, make your orders pass through the custom without any troubles. If you need the detailed CE certification or reports,please contact with us directly.

VJOYCar offers professional package to ensure you get the product in 100% good conditions.

Payment Terms

Aliexpress accepts payment by Visa Card,Master card,Alipay,Qiwi Wallet,Western Union and Bank Transfer T/T. Your money wont release to us before you confirm receiption of the order.

Shipping Terms

1. FREE shipping by Register Post Mail service(2-4 weeks arrived), and paid EMS/DHL/Fedex/TNT/Fedex Express supported(4-7days arrived). If you are in urgent need of the order,please kindly choose Express service.

Track orders: www.17track.net

2. All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send a message to your aliexpress.

3. We will be responsible for all problems in China Customs to ensure all orders pass by China Customs successfully. All buyers are responsible for your local Customs, do assistance to make clearance, and pay for Custom taxes and duties if it happens.

4. Drop shipping supported.

5. As usual,we declare the order as Gift with low value to avoid high importing tax. If you need write real value,please kindly leave message when place order.

Tips:

1. Argentina Custom dont allow importing more than 2 orders oversea. If you ever place 2 orders out of Argentina,please dont order again. Unless,your custom will return the order directly.

2. Russia post mail system ask for real full name to collect the order. Therefore,please kindly write the right full name when place order.

3. Brazil Custom asks for CNPJ or CPF code. Please leave message to tell CNPJ or CPF code when place order.

Warranty Terms

1. All orders will be in good quality, package condition and will be strictly checked before shipment. We will try our best to avoid any unhappy problem from quality or package, therefore, please kindly let us know if you are not satisfied when receive the orders.

2. All orders enjoy 12months quality warranty since shipment. We offer free repairmen always whether it’s with or without warranty period, but buyers need pay for the accessories cost and shipping cost.

3. VIP member policy: all orders can have 10% off on original price for any products; could return the order to us to get 100% refund without reason.

Tips: How to be VIP member in VJOYCar.

Step 1: search VJOYCar in alipexress on PC or Phone APP.

Step 2: add to my favorite store: click the heart icon as below image on the top.

Or Step 3: share the store to Facebook,Twitter,Google+,VK(VKontakte) or Pinterest: Scan the code above, and share.

Feedback and Contact US

1. If you are not satisfied when receive the order, or need any assistance when usage, please dont hesitate to contact with us.

2. If you are satisfied with our products and service, please kindly leave us 5 stars feedback.


Thanks for your kind time and shopping!

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
2018 New VJOYCAR T191 Tail Lamp Easy Locator Bike GPS Tracker Bicycle Alarm System Waterproof 2600mAh Battery Free Tracking Software
