Portable Smart GPS Tracking Locator Tools Choice Collections provide satellite positioning tracker,gps tracker,anti lost tracker Terrific Offers High Quality Mini Car Kids Pet GPS Tracker TK102B Realtime Tracking Device Person Track Device Locator. Get Discount Now! Only US $17.24/piece at this time. Hurry buy Now before back to normal price! Normal price US $22.99 or you can Check price now. Dont waste your time. Buy Now only in Greattop Electronic Company Limited Trusted Seller Store!

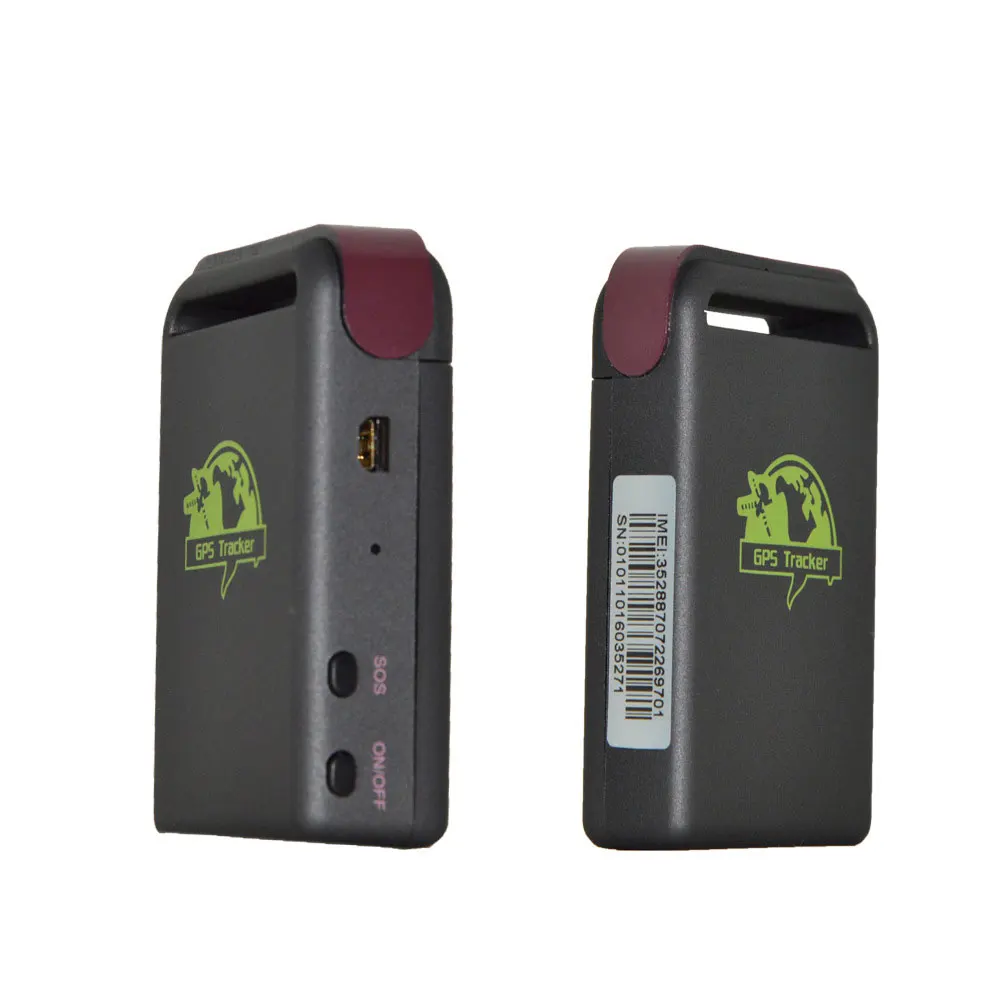

High Quality Mini Car Kids Pet GPS Tracker TK102B Realtime Tracking Device Person Track Device Locator
GPS Locator Vehicle GSM TK102B Car Mini Realtime Online GSM GPRS Tracking Device Locator GPS Tracker TK 102 for Kids Cars Pet ( Not included Retail Box )
Specifications:
Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example Google Earth) which will show where exactly the unit is located.
This Cutting-Edge GPS tracker is designed for advanced tracking/monitoring, especially for vehicle tracking using GPS, GSM and GPRS technology. The GPS tracker is designed for use in any vehicle to track its location, such as cars, trucks, boats, motor homes, vans and construction machinery and many more - the live tracking possibilities are limitless! This is particularly useful if your vehicle, pets, child or your belongings have been stolen. Time to enjoy the benefits this GPS tracker brings!
Features:
- Built-in GPS personal locator.
- GSM / SMS communication or GPRS connection.
- GPS and LBS accurate real-time location.
- Support single location and continuous tracking.
- Support location triggered by tracker.
- Support location triggered by authorized cell phone
- Geo-fence protection, after setting the certain distance, once beyond the distance, your phone will receive alarm alert.
- Over-speed alarm, once the speed is beyond the setting speed, it will alarm.
- Movement alert, timely monitor your vehicles status, anti-theft.
- SOS button, help you get help in emergency circumstance.
- Low battery alert, timely remind you of the low battery.
- Support TF card.
Parameters:
- Network: GSM / GPRS
- Band: 850 / 900 / 1800 / 1900MHz
- GPRS: Class 12, TCP / IP
- Working voltage: DC 9 – 58V
- Standby current: About 0.2mA
- GPS locating time: 45s ( cold start ), 35s ( warm start ), 1s ( hot start )
- Car charger: 12 – 24V input, 5V output
- Power adapter: 100 – 240V input, 5V output
- Rechargeable battery: 3.7V 800 mAh li-ion battery
- Operation time: 10 - 12 hours
- GPS precision: 30m ( 2D RM )
- Working temperature: - 20 - 55 degrees
- Working humidity: 5 - 95 percent RH
GPS Bands : GSM 850/900/1800/1900MHz
GPRS : TCP/IP
Network : GSM, GPRSPackage weight: 0.099 kg
Product size (L x W x H) : 6.5 x 4.5 x 1.7 cm / 2.55 x 1.77 x 0.67 inches
Package size (L x W x H) : 23.5 x 16 x 2 cm / 9.24 x 6.29 x 0.79 inches Package Contents: 1 x TK102B Car GPS Tracker Anti-theft Vibration Over-speed Alarm, 1 x English User Manual1 x USB Cable1 x Rechargeable BatteryNote: In advance Using mobile phone send SMS commands to device and set online platform . Pls insert the 2G of GSM sim card and compatible 2G of GSM network , open the gprs function and ask APN name.
Locate current position by GPRS/SMS
The first kind of Operation by SMS:
Device default password 123456
if forget password or device reply password error, pls send reset123456
step 1: Put the SIM card and battery in place (Remark: 2G GSM card,pls press the power
step 2: take device to outdoor(In 40-- 120 seconds, the unit will begin to acquire the GSM signals and the GPS signals. The indicator will keep flashing every 3 seconds when the unit has received the signals.
step 3: Reset your password(please remeber it, if forget password or device reply password error, pls send reset123456). Use your Authorized number send SMS:“password+123456+space+new password”to change the password. For Example:
then new password is 234567.
Step 4 : Send SMS:“admin+new password+space+Authorized number” to device, Get admin ok!
For Example:
Step 5 :Use your Authorized number call to the device, you will get the Google link
Open link and can see blow ,device have been positioning normal.please note that SIM card number and Authorized number should not be same, or it will not reply.
When GPS signals is weak, within 20s,GPS can not location,will use LBS location,the replied SMS as below:
If SIM card number and Authorized number are same, then when you call the device it will not reply.
Step 6:
Last Geo-info is last time position information. Now is LBS position information.
LAC: Location Area Code CID:Cell Identity MCC:Mobile Country Code MNC:Mobile Network Code By these LBS information, police can find the position.Website:IP 47.90.72.45 port 12024
Set online tracking platform command:
1. adminip123456 www.12gps.net 12024
2. APN123456 Apn name ( APN name pls ask the sim card company ,for example tell you the apn name is ABC,so send APN123456 ABC)reply ok

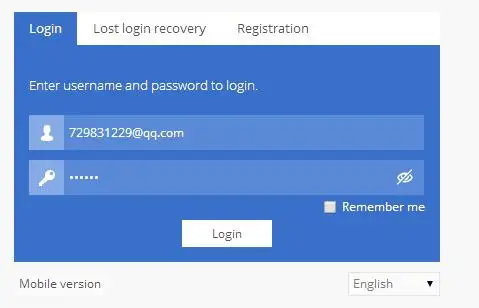

Steps:
1.open and registration account (fill email and right digital,point register)
2. login in email,find password
3.point login, fill email and email in password login
point
(fill name and device 15 digits IMEI number)
point save 4.point on the left device
, show device successful positioning
User mobile App: Andriod: Scan the QR code to install the applictions on your android mobile
IOS: search gps server in the Apple app store (IOS 9.3 and later)
Q.:Do you offer the gps tracker protocol so that can use other platform or connect other service? A.:YesQ.:Can i get the mananger account for mananger my all client device? A.:of course ,and you have the authority that register the account for your clientQ.:How many does one account?A.:no limit the quaility for one accountQ.:Support the mobile appliction program ? A.:It support IOS &Android APK softwareQ.: When i use it , it shows startup fail. A.:Please check the battery and see if it is fully charged orcorrectly installed.Q.: Why it cant power on ? A.:pls check the battery have not power or low power,so pls recharger battery about 8-10 hoursQ.:What should i do when it shows hang up fail? A.In existence of an authorized number, an unauthorized number dials up the unit.Please initialize the unit and re-set up the authorized numbers.Q.: Why it has No GSM Signal? A.:Please make sure SIM Card is GSM Net and installed correctly; also call display should be on; but no call transfer and PIN code off.Q.:Why it can not successed call the device and the device can not know sim card? A.:pls reinstall sim card again or change other sim card (note:the sim card have to support 2G GSM network)Q.:Why it can not reply tracking position after call the device? A.:pls check the device sim card should open call id function and have enough remain money .Q.:Why it can not reply command? A.:pls check you send format,the end of command can not has any invisibility symbol,for example space key,enter key Q.:Why it can not get the gps signal/can not tracking / can not use gps ? A.:pls take the device to outdoor or change a place.and also the front of device towards sky. Beause indoor has no gps signal Q.: How many numbers can be authorized? A.:There are only 5 cell phone numbers able to be authorized, be sure to set the authorization phone number before use.Q.:Why when i sent SMS begin123456, it has no reply ? A.: Please check if you have set up the authorized number,If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up.So if you set authorized number,please use this number to send begin123456,if still no reply , please send reset123456 to re-set up it.
